Cutting area
- 33" X 54" (850 X 1380MM)

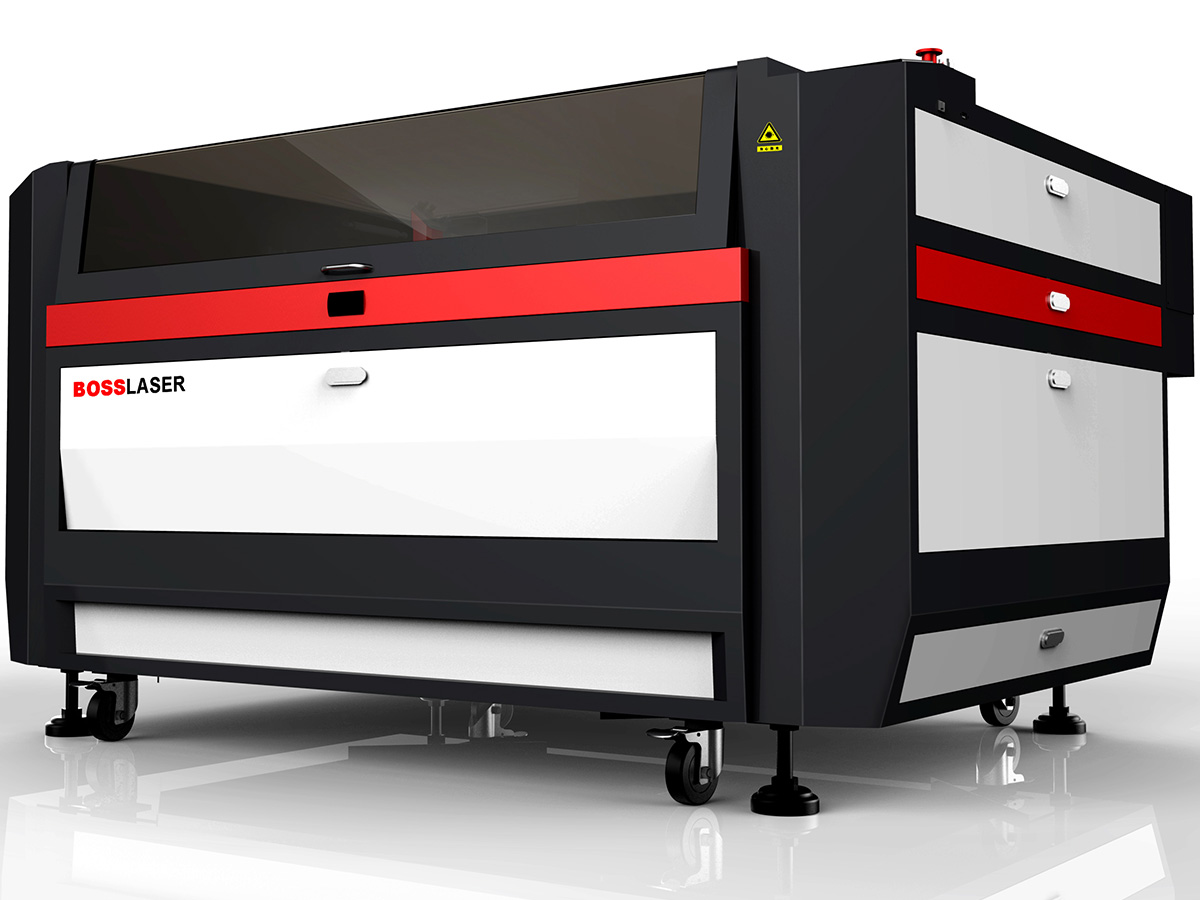

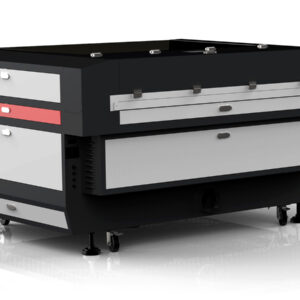

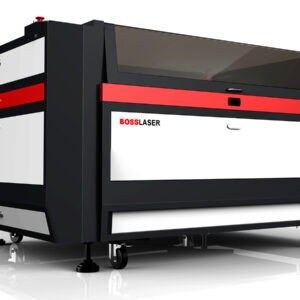

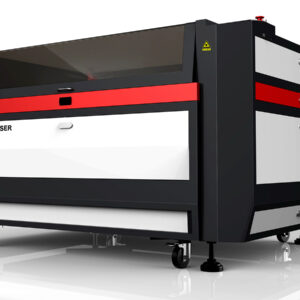

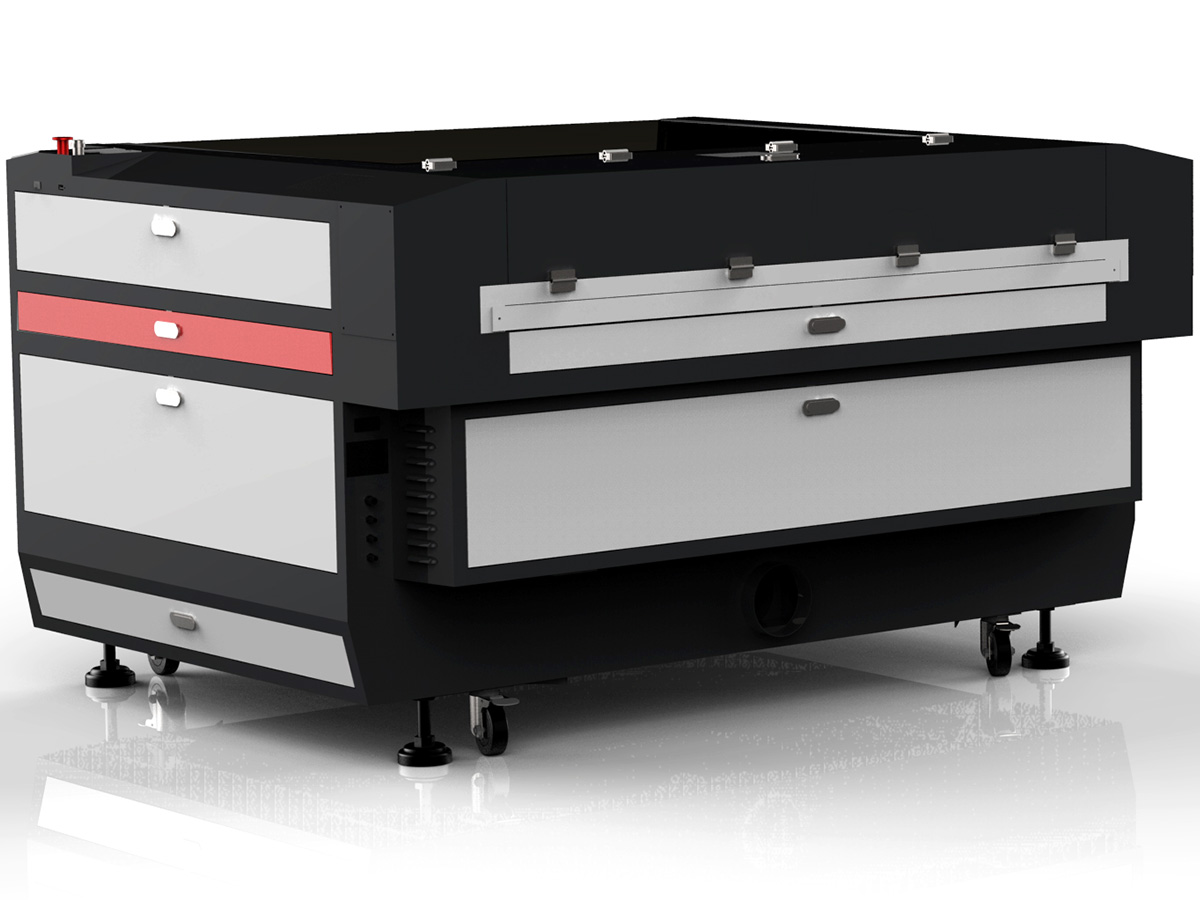

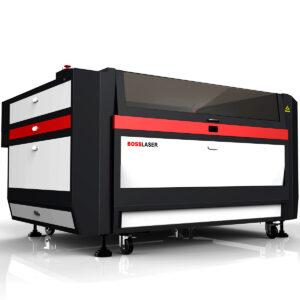

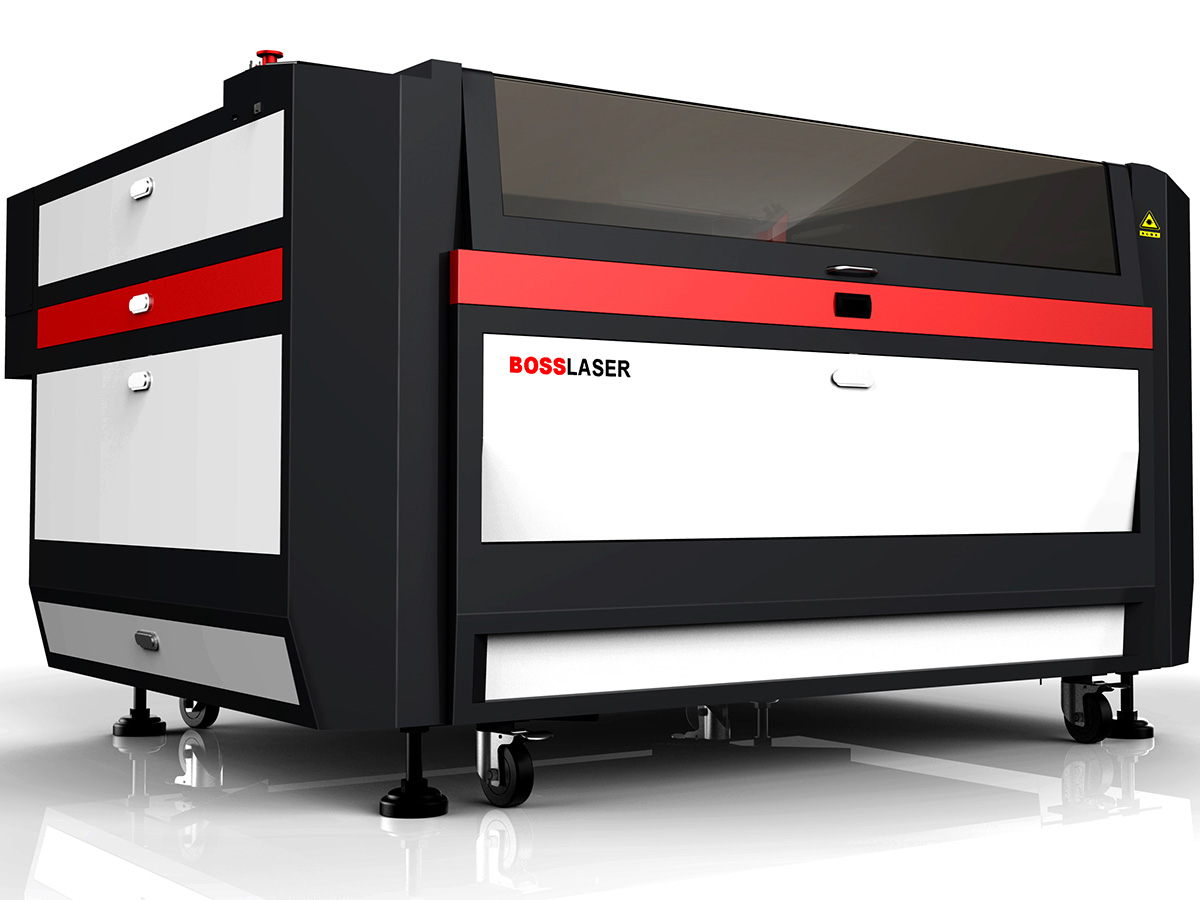

HP-3655 Co2 Laser Cutter and Engraver
High Powered 155W – 36×55″ Hybrid laser cutter delivers the ultimate in material flexibility. Vector cut and raster engrave both metal and non-metal. New Flex™ LIVE reciprocating laser heads. New available Hybrid Drive fastest in class with 1,500mm speed upgrade for up to 3X more speed an acceleration.
TO SCHEDULE A FREE VIRTUAL DEMO CLICK HERE
From: $16,997.00
Build your machine
Features
155W CO2 POWER
Boss’ X-SeriesTM – The HP series starts with an impressive 155 watts of cutting power with a life time performance of up to 12,000 hours.
We watt reader test the laser output throughout the assembly process to ensure a quality beam profile and maximum power.
The X-Series is engineered to handle demanding production environments and long workdays while delivering consistent results for every job.
By constantly refining and improving the beams power density the X-Series generates a powerful cutting beam with exceptional engraving resolution. Each X-Series tube comes with a (1) One-Year warranty.
MATERIAL PROCESSING
The HP gives you the ultimate in material flexibility. The reciprocating laser head with its high air pressure capability allows you to cut up to 3/4″ organic materials or 16ga (1.6mm) Stainless Steel with precision.
4-Way Material Tru-Pass-Thru™ Points For Greater Flexibility
Dramatically improve material flexibility using Boss’ Tru-Pass-Thru™ points. Expand your production work area with Boss’ 4 way material pass through points. Slide and extend your material outside of the work area either front to back or side to side.
Laser Software
Laser CAD – Basic HP Operations Software
LightBurn™ Software – Recommended “Optional” layout, editing, and control software package that is extremely intuitive and feature rich.
LightBurn is a native application written for Windows, Mac OS, and even Linux operating systems. Comes Camera compatible.
Designed & Engineered In USA By Boss Laser
As we continue to design, engineer, and assemble our laser systems here at Boss we have expanded our facilities to 43,000 sq. ft. We continue to build in-house as well. We strive to improve our quality output by upholding our IS0-9001:2015 certifcation. We are also members of BBB, D&B, System for Award Management (SAM), and Laser Institute of America (LIA). See a laser Live! Come and visit us in Sanford, FL just 20 min North of Orlando.
New & Easy Laser/PC Connectivity Via. WI-FI, Ethernet, Or USB
Various laser to PC connectivity choices – USB, Ethernet, or WiFI (router available for purchase).
New 256MB USB Flash Drive For Alternative Job Storage
As an alternative to the onboard memory available on the controller card you can also save or run jobs from the 256 MB USB flash drive.

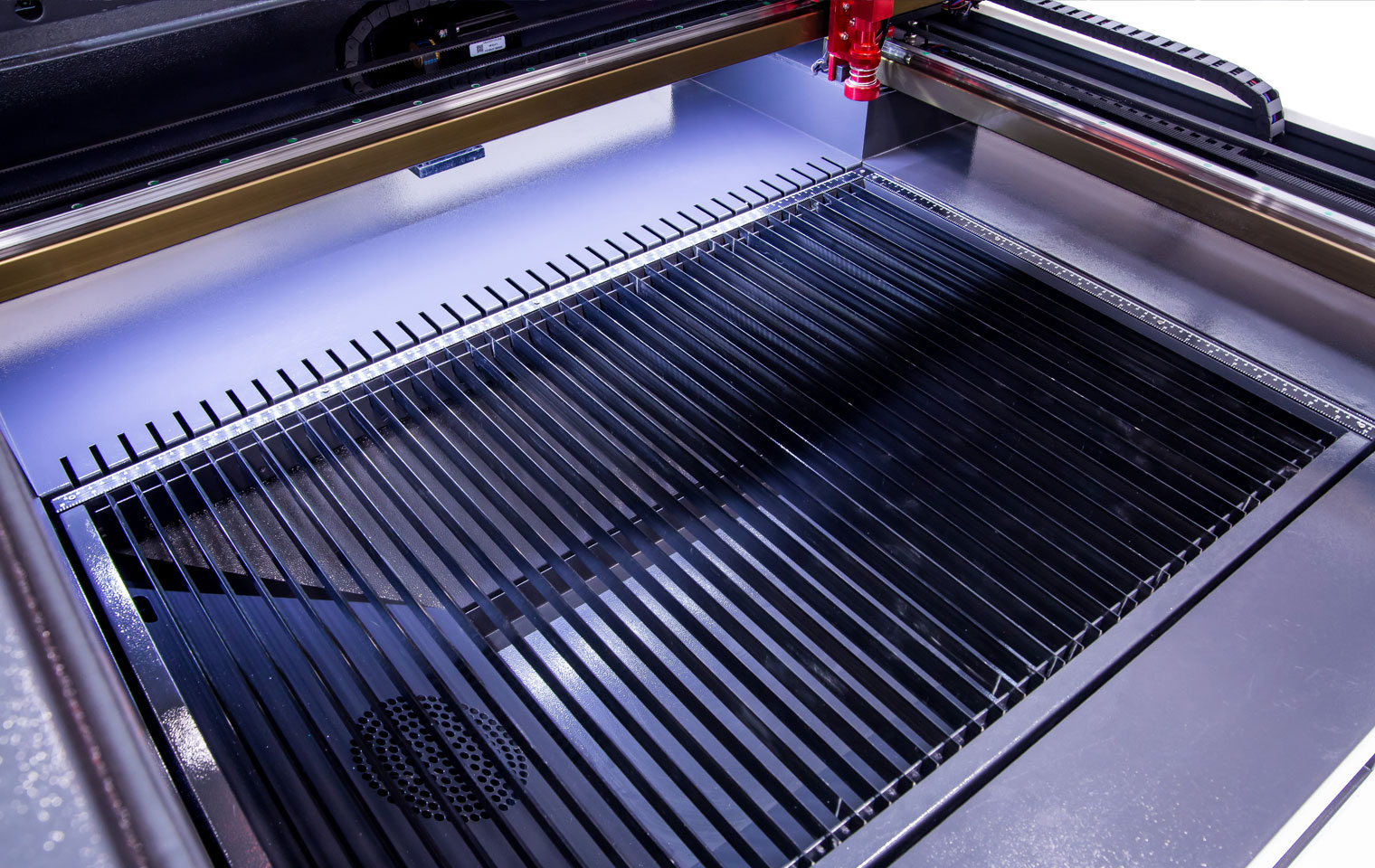

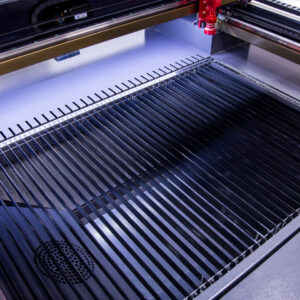

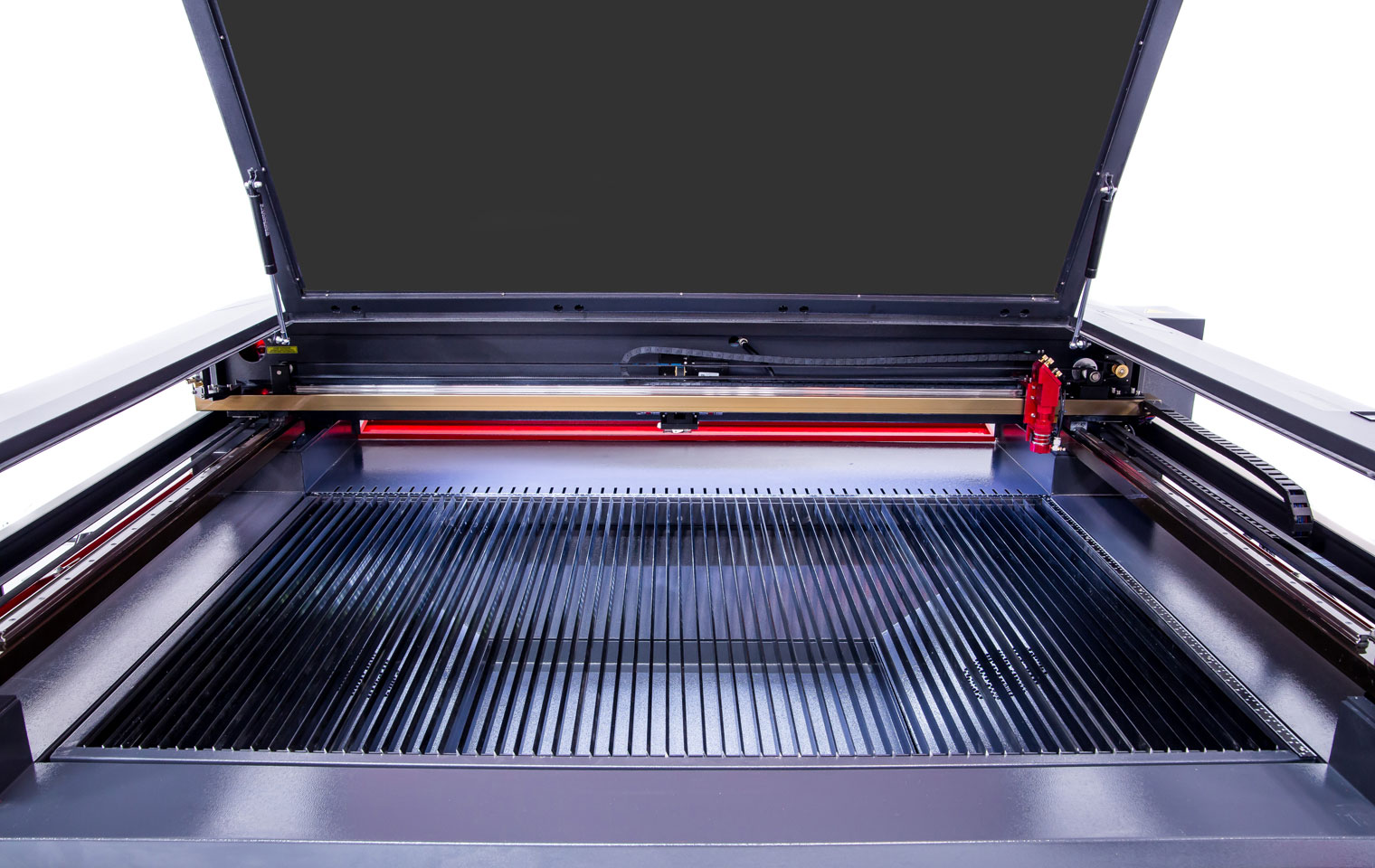

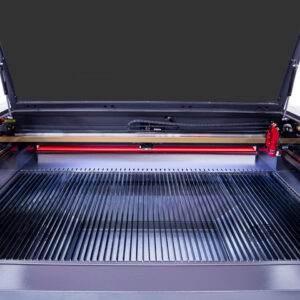

HP Saw Tooth & Knife Blade Platform

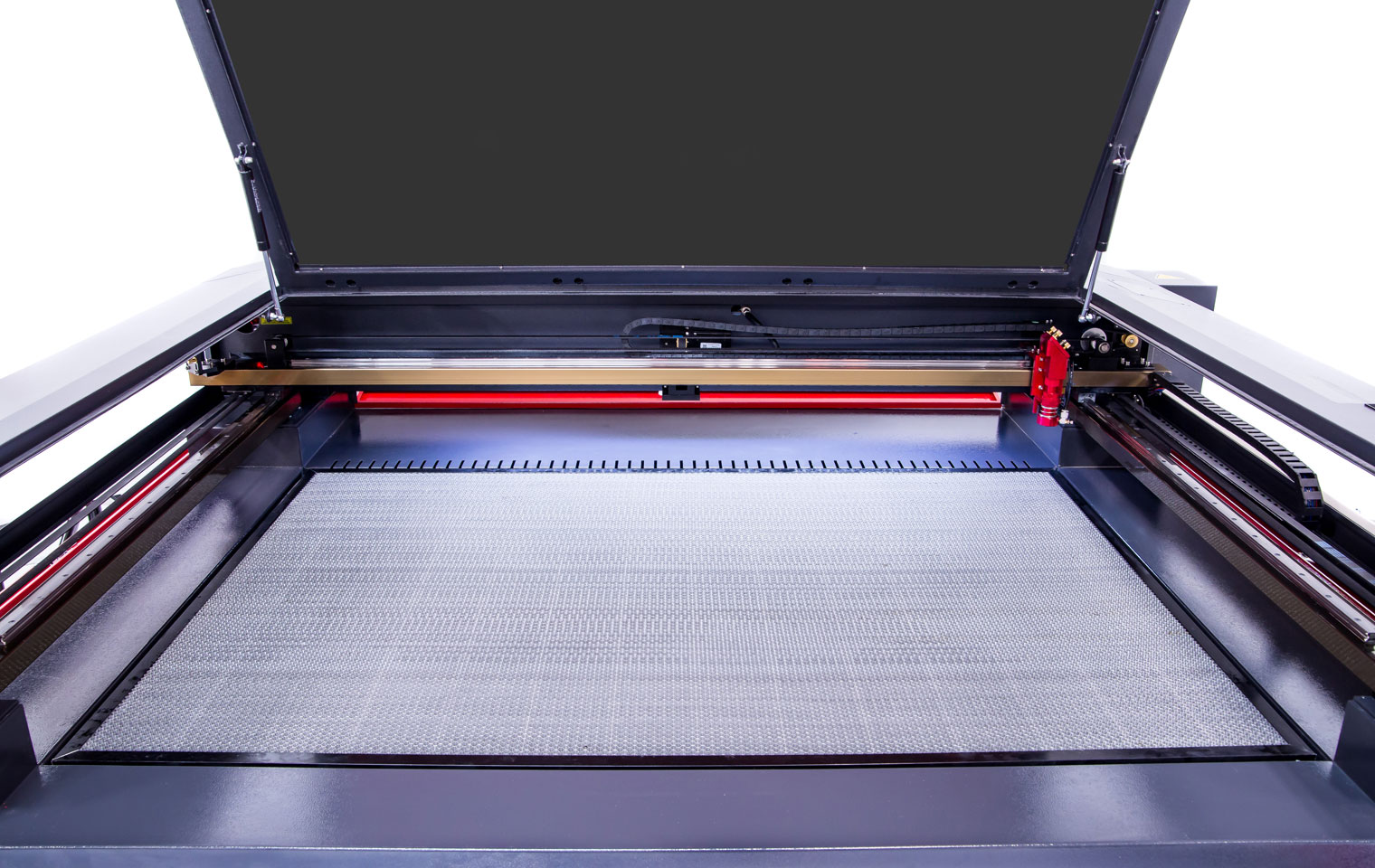

Whether laser processing wood, acrylic, or stainless steel the Saw Tooth and Knife Blade platform will accommodate your material of choice. NOTE: An aluminum honeycomb platfomr for laser cutting small items may be purchased separately.

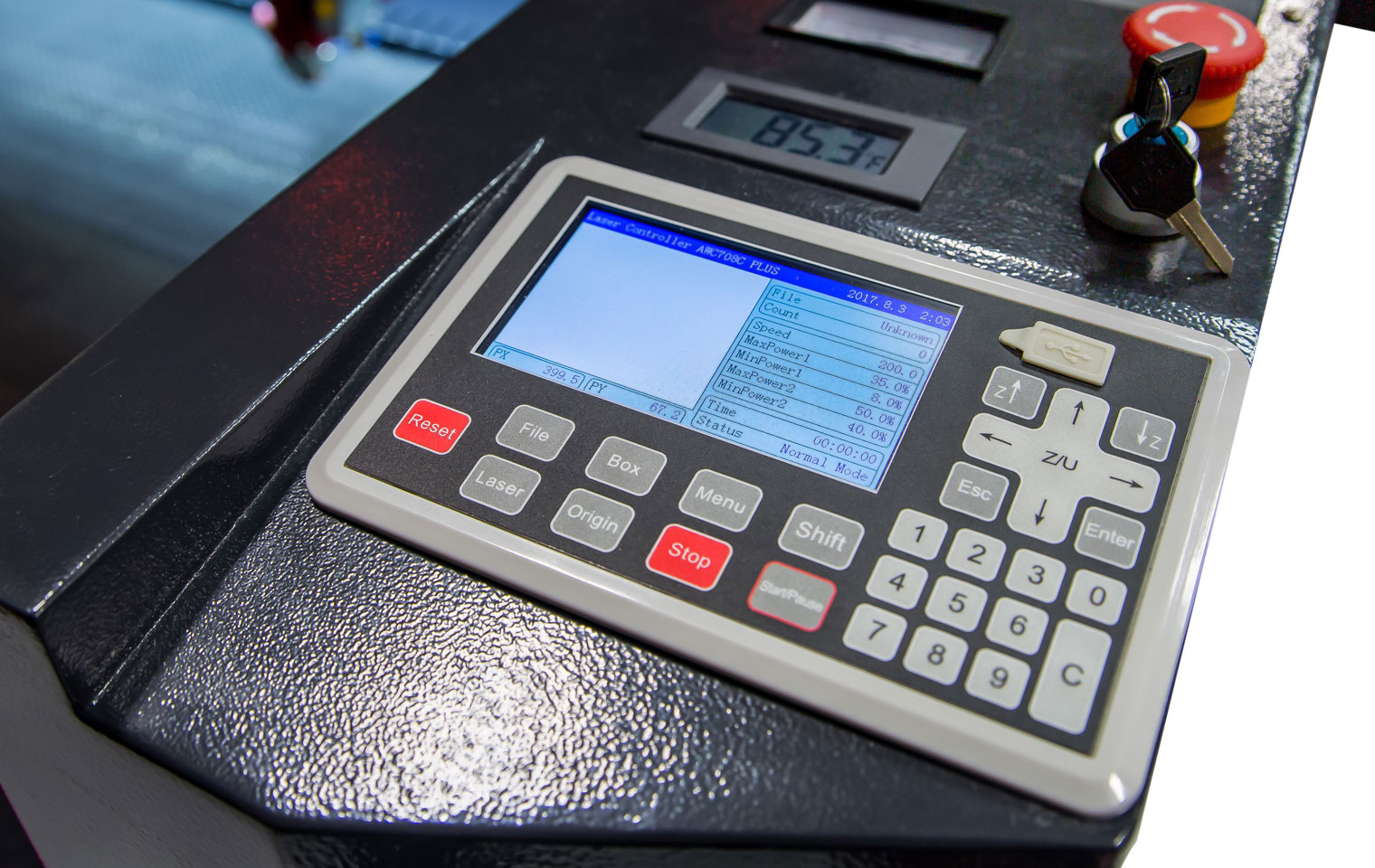

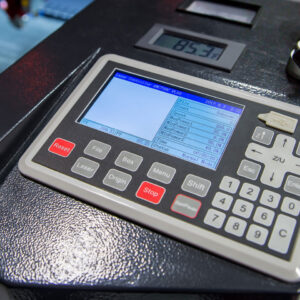

HP Series Illuminated LCD For Quick Touch Laser Head Control
HP series illuminated LCD touch pad allows operators to easily gain dependable job control of either laser head.
Inline Beam Combiner Illuminates Red Dot For Improved Accuracy And Alignment
The infrared laser beam is invisible to the naked eye but, the included Inline Beam Combiner accurately illuminates a red dot over your material taking the guess work out of where the laser will start to process.
Hybrid Servo Drive System
Hybrid Servo Drive – American servo motors and drivers. 5X speed & acceleration compared to stepper motors making it the fastest in its class!
Raster engrave up to 1,500 mm – Optional Upgrade
Made in USA Focal Lenses
Made-In-USA Optics – NEW! meniscus focal lenses for enable high quality engraving and deeper cutting for your laser engraving or cutting application. Unlike cheaper plano-convex lenses with a flat side our meniscus focal lenses yield a smaller focused spot with a 14% improved beam transmission to the material.
Push Button Z-Axis
Motorized Z-Table With Working Height of 8″ accommodates taller objects.
The taller cabinet design gives you a higer level of work space including up to 8″ of vertical Z-axis movement. At the push of a button you can lower the platform to accommodate taller objects.

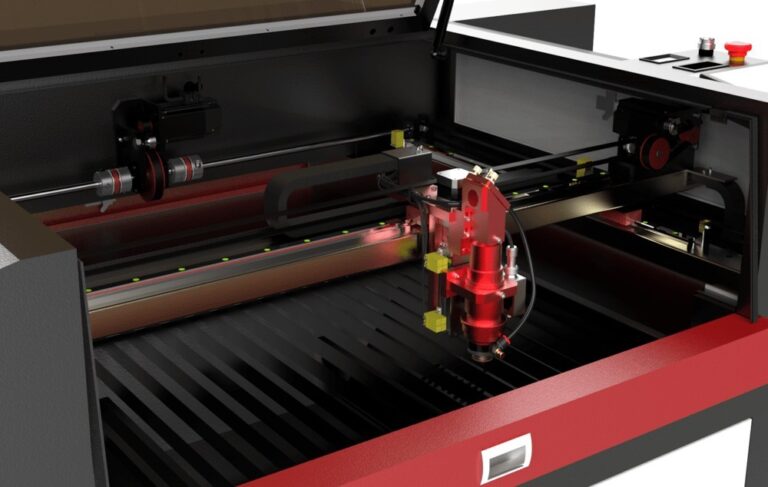

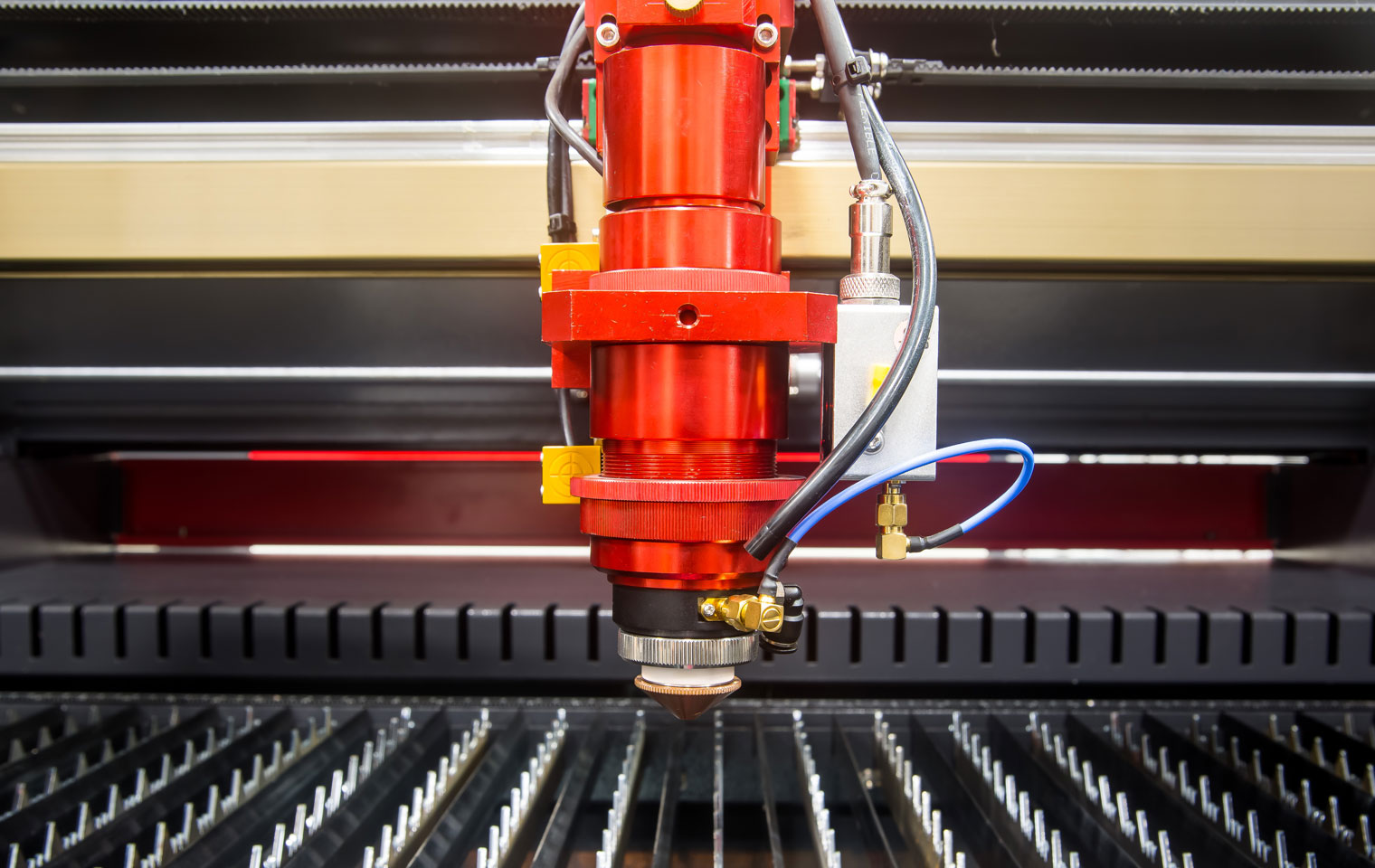

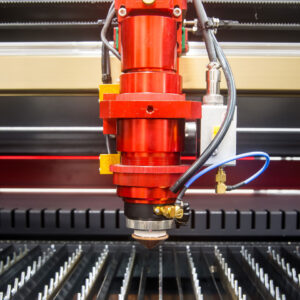

HP Reciprocating - VECTOR DC™ Laser Head For Steel Processing
The HP series machines all come with two separate laser heads: Flex™ & Vector DC™ for processing organic and steel materials. The VectorDC™ head closely follows sheet metal contours for effective and consistent processing.

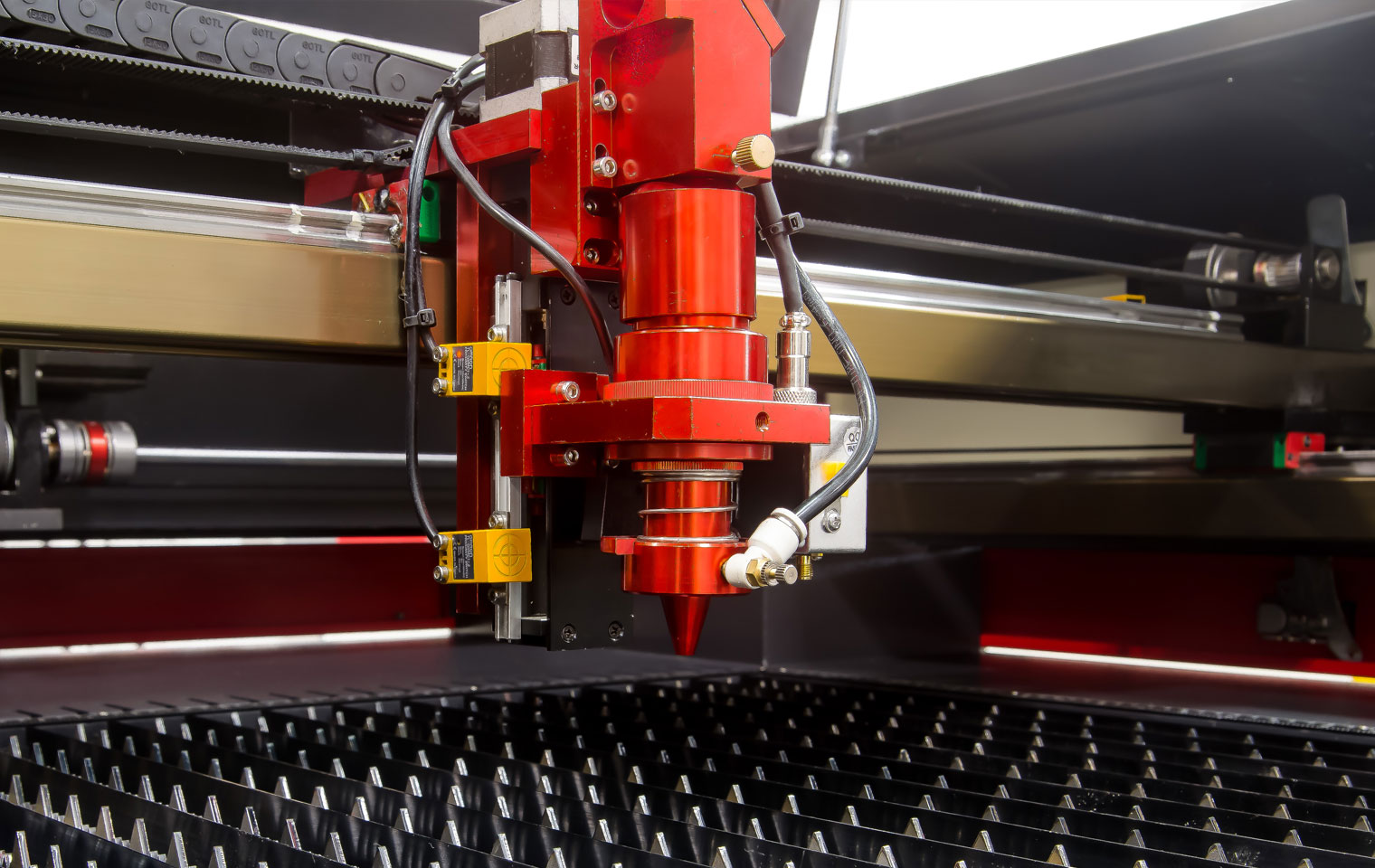

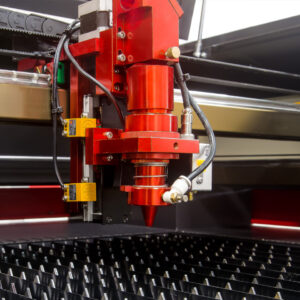

HP Auto Focus - FLEX™ Laser Head For Organic Material Processing
The HP series machines all come with two separate laser heads: Flex & Vector DC for processing organic and steel materials. The Flex allows you to change between 2.5″ or 4″ focal lenses depending on the thickness of the organic material being processed.
PC Compatibility Windows, Mac OS, Or Linux
Using your current computer is no problem! Our native application software is written for Windows, Mac OS, and even Linux operating systems 32 or 64 bit.
Quality Management System (QMS) - ISO-9001 CERTIFIED
ISO 9001 is the International Standard for a quality management system (“QMS”). In order for our company to be third party certified to the ISO 9001 standard, we had to follow the requirements set forth within the Standard. ISO 9001 evaluates whether our QMS is first appropriate and effective, and then forces us to identify and implement improvements.
In short the standard demonstrates our ability to consistently provide products and services that meet customer and regulatory requirements and to demonstrate continuous improvement. The current version is ISO 9001:2015, which was published in September of 2015 (thus the: 2015).
Tech Support For Life Via. BOSS' In-House Laser Tech's And Engineers
Our In-House Tech Support team is here to serve and support from the day you receive your BOSS Laser and for as long as you own the machine. Our tech support utilizes video, help manuals, phone, email, remote support via. Team Viewer, FaceTime, and even on-site support if necessary. Need on-site installation and training for your team? Give us a call we’re here to help!
Warehoused Replacement Parts & Accessories For Quick Replacement
Having supported thousands of businesses, hobbyists, educational, military, and Government institutions we know and understand how critical it is to be able to deliver competant and timely support. Quality support begins with warehousing ALL parts to the machine you purchase – in our facilites. That way if you have an issue with your laser cutter we can not only diagnose the problem we can also ship you the part you need same or next day. This way you experience minimal down time.
Warranty - 2 Year Limited
Boss has improved its warranty! Our laser systems are warranted to be free from defects in material and/or workmanship under normal use and service for a period of (1) One-Year from the date of purchase.
Materials
How can you use your HP-3655?
Non metals
Metals
Non metals
Metals
Non metals
Metals
*Laser-able metal blanks have a coating or layer that the laser removes, revealing the design. This machine can process items like brass nameplates and powder-coated stainless steel tumblers.
**Metals can be marked using LaserBond Marking Spray or other pre-treatment.
Specs
Work Area
- 40"L X 60"W X 8"H + MATERIAL PASS THRUS
Laser power
- X-SERIES™ 155 WATTS
Software Interface
- Laser CAD (Standard)
- LightBurn (Optional)
Material capability
- ORGANICS & SHEET METAL UP TO 18GA -ABLE TO MARK TREATED METALS
Machine Dimensions
- 81.5"L X 58.2"W X 44.5"H
Motor type
- Hybrid Servo Motors - up to 1,500mm
Z-table
- Push button lower or raise 7.5"
Material platform
- SAW TOOTH + KNIFE BLADE PLATFORM WITH OPTIONAL HONEYCOMB ADD-ON
Venting Attachments
- AIR EXHAUST FAN WITH VENTING PIPE
Gross Power
- Up to 20 amps
Net Weight
- 1,200 LBS - MACHINE ONLY
Power Supply
- PREMIUM AC 110V
OS Compatibility
- Windows, Mac OS, or Linux (32 or 64-bit)
Crate Dimensions / Gross Weight
- 86” L X 64” W X 50” H / 1,475 LBS
Class
- Class 4 laser
Warranty
- 2-Years Parts / 1-Year for laser tube
