Dual Servo Drive Y-Axis

Yaskawa’s Sigma7™ servo series was designed to maximize responsiveness in applications where precise load matching is of critical importance. This family of brushless servo motors can respond with rated speeds to 3000 rpm and torque ratings up to 2.39 N-m (21 in-lb.) when an application requires it. 24-bit encoder resolution maintains industry-leading positional accuracy in any operating condition.

Made in Germany with a branch here in New Jersey, Atlanta Drive Systems gives BOSS’ FC Elite fiber cutter high precision helical gear racks.  With minimal pitch error over the entire travel length the high precision parallelism allows for drives with extremely low backlash without the need for preloading.

Manufactured to aerospace standards to 6061 T6 – hardened aluminum alloy.  T6 temper 6061 aluminum is treated to provide the maximum precipitation hardening (therefore yielding maxium strength).    Aviation aluminum has many advantages beyond strength including light weight, corrosion resistant, low density, all of which contribute ot improved processing speeds.

Premium fiber laser head suitable for medium and higher power fiber lasers in industrial applications. Includes a new dust-proof design that eliminates collimation lens contamination.   Also, a top protective window was added to the collimation assembly as well as the bottom protective window structure is also fully upgraded with protection.  This double protection design enhances the user experience by practically eliminating any lens contamination risk.

Head Features:

• Optimized optical configuration offers a smooth and  efficient airflow design
• Improved anti-collision function prevents damaging the laser head
• Tunable focus adjustment with range of 20mm, accuracy – 0.05mm
• Collimation lens, focusing lens, and nozzle equipped with cooling structures

Machine mounted and adjustable Monitor connected to Windows 10 PC.  Includes CYP-CUT laser interface pre-installed.

The main and critical components to the drive transmission include: Helical Gear Rack & Pinion transmission supported on 20mm Hiwinn Rails & Bearing Blocks.  Yaskawa Sigma7^TM servo motors and drivers coupled with Neutgart inline gear reduction enables the FC 6012 Elite to achieve +/- .004″ positioning accuracy.

Have more questions?  Feel free to give one of our laser experts a call.  We’re here to help? 407-878-0880

Designed for laser cutting CypCUT is a popular and robust software for industrial fiber laser systems.  It includes control card, breakout board with a wireless remote along with a  free standing capacitive height adjustor.  On the VIDEOS tab you can view the nesting utility.

NOTE: Most FC series laser purchases include a minimum of 2 days install and training of which operators will be able to understand CypCUT functionality.

As we continue to design, engineer, and assemble our laser systems here at Boss we have expanded our facilities to 43,000 sq. ft.  We continue to build in-house as well.  We strive to improve our quality output by upholding our IS0-9001:2015 certifcation. We are also members of BBB, D&B, System for Award Management (SAM), and Laser Institute of America (LIA).  See a laser Live! Come and visit us in Sanford, FL just 20 min North of Orlando.

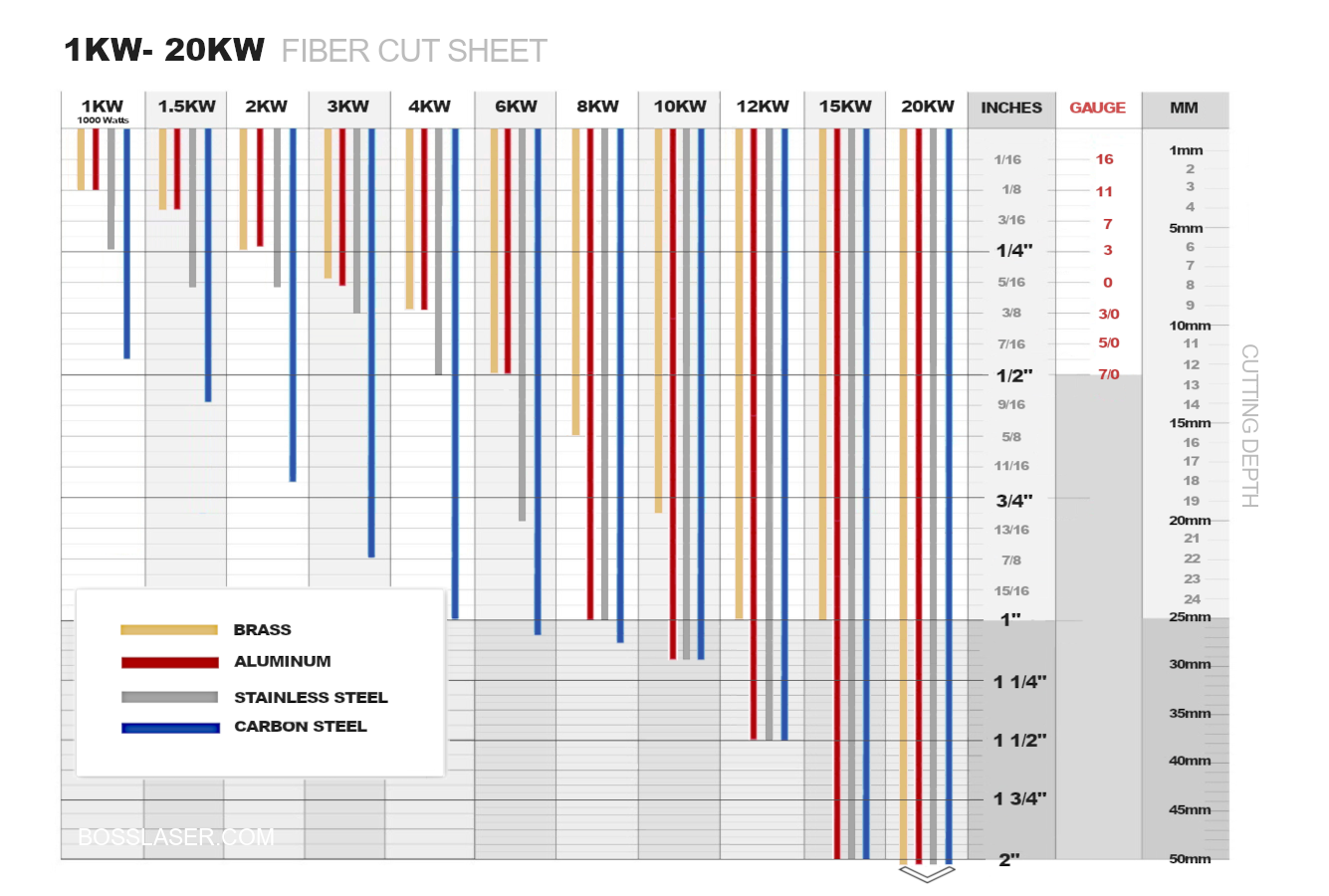

Fiber Laser Cut Steel with Precision up to 9mm thick for Carbon Steel using 1KW IPG power.  More power will obviously improve upon that as well as the speed.  Have questions?  Give one of our fiber laser experts a call: 407-878-0880.

The thermostat controlled cabinet protects the electrical components and IPG laser source from dust and heat for increased longevity.

Our dual temperature water chiller provides  4200 watts of cooling capacity.  Designed for cooling 1000W fiber lasers they are include both a dual circulating refrigeration and dual temperature control systems.

• Voltage: 220V
• Frequency: 50/60Hz
• Refrigerant: R-410a
• Reducer: capillary
• Pump Power: 0.55KW
• Tank Capacity: 15L
• Inlet And Outlet: Rp1/2+Rp1/2
• N.W: 67Kgs
• G.W: 77Kgs
• Dimension: 70*47*89(L*W*H)
• Package Dimension: 74*61*104(L*W*H)

Neugart^_TM  gearboxes offer an ideal combination of precision planetary gears and highly efficient bearing technology. Developed specifically for delivering the maximum performance at high speeds, its helical teeth provide homogeneous synchronism and quiet operation.

Removable SawTooth Blade Cutting Platform and material clamps for sheet metal processing.

Let’s get your team producing quickly and efficiently!  Boss’ EXT cutters include Two (2) Days of On-Site Installation & Training.
We cover the most important items from machine safety, set-up, maintenance, basic software functions, and if time permits any new job you want to be setup for.

ISO 9001 is the International Standard for a quality management system (“QMS”).  In order for our company to be third party certified to the ISO 9001 standard, we had to follow the requirements set forth within the Standard. ISO 9001 evaluates whether our QMS is first appropriate and effective, and then forces us to identify and implement improvements.

In short the standard demonstrates our ability to consistently provide products and services that meet customer and regulatory requirements and to demonstrate continuous improvement.  The current version is ISO 9001:2015, which was published in September of 2015 (thus the: 2015).

Our In-House Tech Support team is here to serve and support from the day you receive your BOSS Laser and for as long as you own the machine.   Our tech support utilizes video, help manuals, phone, email, remote support via. Team Viewer, FaceTime, and even on-site support if necessary.   Need on-site installation and training for your team? Give us a call we’re here to help!

Having supported thousands of businesses, hobbyists, educational, military, and Government institutions we know and understand how critical it is to be able to deliver competant and timely support.  Quality support begins with warehousing ALL parts to the machine you purchase – in our facilites.  That way if you have an issue with your laser cutter we can not only diagnose the problem we can also ship you the part you need same or next day.  This way you experience minimal down time.

Boss’ fiber laser power warranty is two (2) years covers all parts including the fiber laser source.  Have questions?  We’re here to help:  407-878-0880.

What about Boss’ return policy?  You have thirty (30) full days to test drive your BOSS LASER machine for yourself.  Engrave, cut, and prove it for yourself!  We Guarantee a quality machine backed by quality support!  See details here:  BOSS Guarantee & Warantee Policy
