Cutting area
- 98.5"W X 51.18

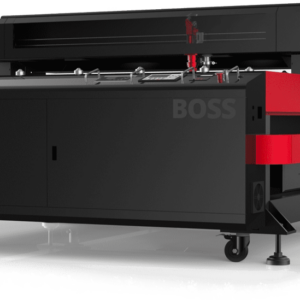

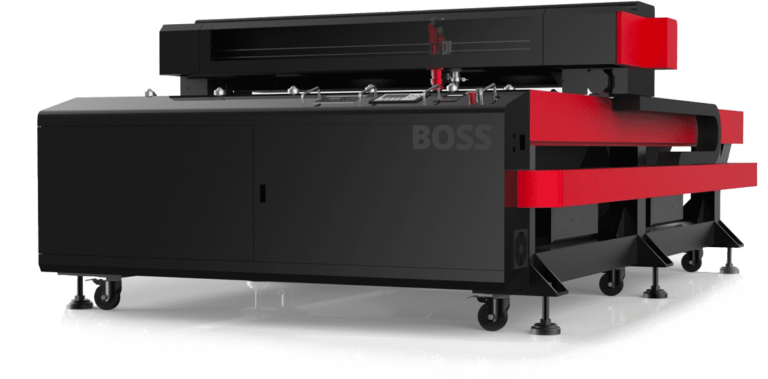

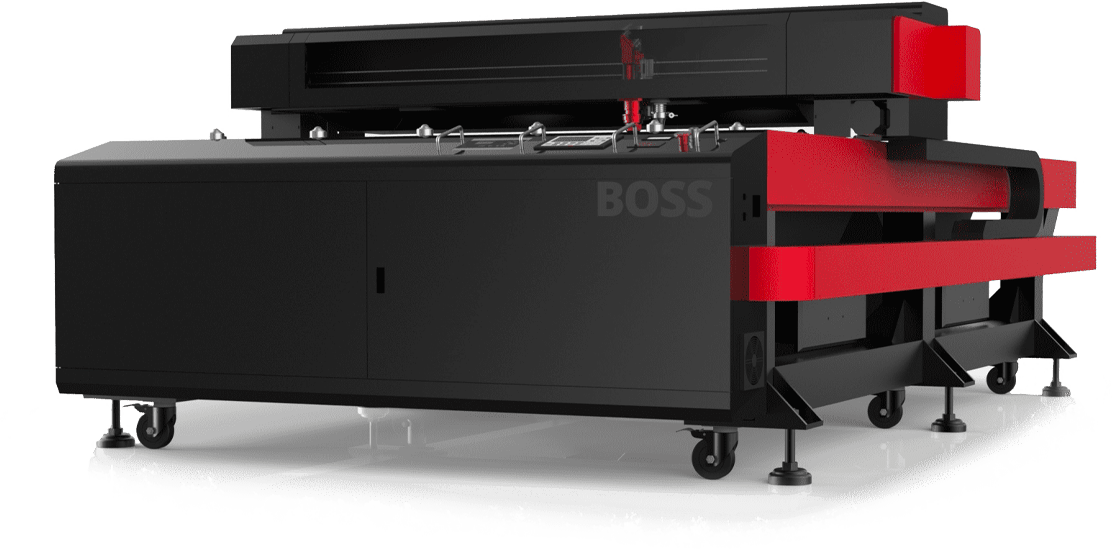

HP 5598 Co2 Laser Cutter and Engraver
High Powered HP-5598 delivers up to 250 watts. BOSS designed and engineered dual control technology allows the HP Series to vector cut PLUS raster engrave both metal & non-metal materials! New Flex™ LIVE reciprocating laser heads.
From: Original price was: $22,497.00.$19,997.00Current price is: $19,997.00.
Build your machine
Features
155W CO2 Power BOSS X-SERIES™
The HP series starts with the BOSS X-SERIESTM laser tube with 155 watts of cutting power and a life time performance of up to 12,000 hours.
We thoroughly perform watt reader tests throughout the assembly process to ensure a quality beam profile and maximum power.
The X-Series is engineered to handle demanding production environments and long workdays while delivering consistent results for every job.
By constantly refining and improving the beams power density the X-Series generates a powerful cutting beam with exceptional engraving resolution. Each X-Series tube comes with a (1) One-Year warranty.
Nema Stepper System
Utilizes Industry Standard Nema Stepper System.
Metal & Non-Metal Processing Power
The HP gives you the ultimate in material flexibility. With the support of pressure, reciprocating laser head and a 155W X-Series laser tube – the HP allows you to cut up to 3/4″ Organic materials or up to 18 Ga (1.02mm) Stainless Steel with laser precision. Power up with the Iradion 1625 Series 250W to further increase cutting speeds and depth.
250W CO2 Power Upgrade
250W CO2 POWER UPGRADE
Iradion’s Ceramic Core Power Upgrades HP-5598’s power and speed with 250 watts of CO2 laser cutting power.
Iradion 1625 Series lasers are based on proven Ceramic Core Technology and offer the advantages of superior stability, gas lifetime, and reliability over traditional metal tube technology.
Upgrade also Includes (1) One-Year Warranty on the laser.
Laser Software
Laser CAD – Basic HP Operations Software
LightBurn™ Software – Recommended “Optional” layout, editing, and control software package that is extremely intuitive and feature rich.
LightBurn is a native application written for Windows, Mac OS, and even Linux operating systems. Comes Camera compatible.
Cut Up To 14 Ga Steel & 1" Wood
Upgrade your Boss HP-5598 metal and non-metal cutter to 250 Watt Iradion RF Ceramic tube to increase both your processing speed and cutting power.
Cut up to 14 ga steel and 1″ wood. Cutting speed is relative to the type and thickness of the material.
Have questions? We’re here to help: 407-988-2420
Designed & Engineered In USA By Boss Laser
As we continue to design, engineer, and assemble our laser systems here at Boss we have expanded our facilities to 43,000 sq. ft. We continue to build in-house as well. We strive to improve our quality output by upholding our IS0-9001:2015 certifcation. We are also members of BBB, D&B, System for Award Management (SAM), and Laser Institute of America (LIA). See a laser Live! Come and visit us in Sanford, FL just 20 min North of Orlando.
HP Reciprocating - VECTOR DC™ Laser Head For Steel Processing
The HP series machines all come with two separate laser heads: Flex™ & Vector DC™ for processing organic and steel materials. The VectorDC™ head closely follows sheet metal contours for effective and consistent processing.
HP Auto Focus - FLEX™ Laser Head For Organic Material Processing
The HP series machines all come with two separate laser heads: Flex & Vector DC for processing organic and steel materials. The Flex allows you to change between 2.5″ or 4″ focal lenses depending on the thickness of the organic material being processed.
HP-5598 Illuminated LCD Panels For Quick Touch Laser Head Control
HP-5598 includes illuminated LCD touch pad includes guard protection giving operators the ability to gain dependable job control of either laser head.
Inline Beam Combiner Illuminates Red Dot For Improved Accuracy And Alignment
The infrared laser beam is invisible to the naked eye but, the included Inline Beam Combiner accurately illuminates a red dot over your material taking the guess work out of where the laser will start to process.
Knife & Sawtooth Blade Platform For Metal And Non-Metal Processing
Knife & Sawtooth Blade Platform for metal and non-metal processing. Blades are removable exposing the finished product collection trays.
Made in USA Focal Lenses
Made-In-USA Optics – NEW! meniscus focal lenses for 2021 enable high quality engraving and deeper cutting for your laser engraving or cutting application. Unlike cheaper plano-convex lenses with a flat side our meniscus focal lenses yield a smaller focused spot
with a 14% improved beam transmission to the material.
New & Easy Laser/PC Connectivity Via. WI-FI, Ethernet, Or USB
Various laser to PC connectivity choices – USB, Ethernet, or WiFI (router available for purchase).
PC Compatibility Windows, Mac OS, Or Linux
Using your current computer is no problem! Our native application software is written for Windows, Mac OS, and even Linux operating systems 32 or 64 bit.
Quality Management System (QMS) - ISO-9001 CERTIFIED
ISO 9001 is the International Standard for a quality management system (“QMS”). In order for our company to be third party certified to the ISO 9001 standard, we had to follow the requirements set forth within the Standard. ISO 9001 evaluates whether our QMS is first appropriate and effective, and then forces us to identify and implement improvements.
In short the standard demonstrates our ability to consistently provide products and services that meet customer and regulatory requirements and to demonstrate continuous improvement. The current version is ISO 9001:2015, which was published in September of 2015 (thus the: 2015).
Tech Support For Life Via. BOSS' In-House Laser Tech's And Engineers
Our In-House Tech Support team is here to serve and support from the day you receive your BOSS Laser and for as long as you own the machine. Our tech support utilizes video, help manuals, phone, email, remote support via. Team Viewer, FaceTime, and even on-site support if necessary. Need on-site installation and training for your team? Give us a call we’re here to help!
Warehoused Replacement Parts & Accessories For Quick Replacement
Having supported thousands of businesses, hobbyists, educational, military, and Government institutions we know and understand how critical it is to be able to deliver competant and timely support. Quality support begins with warehousing ALL parts to the machine you purchase – in our facilites. That way if you have an issue with your laser cutter we can not only diagnose the problem we can also ship you the part you need same or next day. This way you experience minimal down time.
2 Year Limited Warranty
Boss has improved its warranty! Our laser systems are warranted to be free from defects in material and/or workmanship under normal use and service for a period of (1) One-Year.
We 100% Guarantee With Our 30-Day Guarantee Return Policy
What about Boss’ return policy? You have thirty (30) full days to test drive your BOSS LASER machine for yourself. Engrave, cut, and prove it for yourself! We Guarantee a quality machine backed by quality support! See details here: BOSS Guarantee & Warantee Policy
Materials
The Boss HP-5598 Can...
Non metals
Metals
Non metals
Metals
Non metals
Metals
*Laser-able metal blanks have a coating or layer that the laser removes, revealing the design. This machine can process items like brass nameplates and powder-coated stainless steel tumblers.
**Metals can be marked using LaserBond Marking Spray or other pre-treatment.
Specs
Laser power
- 155W CO2 & 250W Iradion
Software Interface
- LightBURN™ Software
Material capability
- ORGANICS & SHEET METAL UP TO 14GA -ABLE TO MARK TREATED METALS
Machine Dimensions
- 132"L X 84"W X 46.5"H
Motor type
- NEMA STEPPER SYSTEM 400 MM SEC
Z-table
- Z AXIS - 2" RECIPROCATING MOVEMENT
Material platform
- EQUIPPED WITH KNIFE BLADE CUTTING PLATFORM
Venting Attachments
- DUAL AIR EXHAUST FAN WITH VENTING PIPE W/ OPTIONAL GANTRY MOUNTED PORTS
Gross Power
- 1500 WATTS / 20 AMPS
Net Weight
- 2,800 LBS - MACHINE ONLY
Power Supply
- PREMIUM AC 110V
OS Compatibility
- Windows, Mac OS, or Linux (32 or 64-bit)
Laser / PC Connectivity
- USB OR WIFI CONNECT
Job Memory Capacity
- 128MB
Crate Dimensions / Gross Weight
- 132"L X 84"W X 46.5"H (MACHINE SHIPS UNCRATED) 2800 LBS
Warranty
- 2-Years Parts / 1-Year for laser tube
Class
- Class 4 laser
WARRANTY
30 DAY-MONEY BACK GUARANTEE
Any feelings of skepticism you might have about investing in a new laser machine is completely normal! This is why BOSS LASER makes every effort to absorb as much risk as possible so you’re free to make a good decision. We want to make it easy for you to prove that our laser systems are quality machines backed by quality support.
We want you as our customer to be 100% satisfied. BOSS LASER guarantees you a 30-Day Return window (beginning the date of receipt) to evaluate your purchase. Click here for details.
2 YEAR LIMITED WARRANTY
BOSS LASER warrants its products and parts against defects in materials or workmanship for two (2) years from the original date of receipt. Click here for details.
